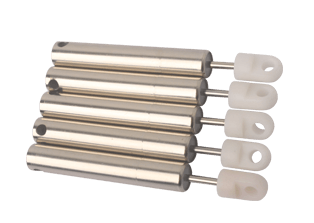

CR10-34-2.5-S/F Hydraulic Damper
Speed control of linear movement without free travel
Max. force: 130±2N, Max. stroke: 15mm.
Coricher CR08-70-2-S/F linear dampers are hydraulic fittings for slowing down moving parts. They diminish closing impact and create a silent and safe living or working environment for you. What’s more, they are maintenance-free, self-contained and sealed units.
We can also provide customized solution to specifically meet your individual requirements.
Coricher hydraulic dampers as high-quality hydraulic fittings, used for sliding drawers, motion doors, lids and more.
TECHNICAL DATA
Max stroke:
15mm
Tube length:
34mm
Max. force:
130±2N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
