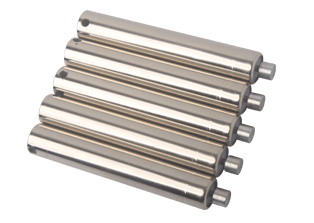

CR15-90-3.0-S/F Hydraulic Damper
Deceleration technology for doors without free travel
Max. force: 300±2N, Max. stroke: 70mm.
Coricher high-quality CR15-90-3.0-S/F hydraulic anti-slam dampers utilize advanced deceleration technology for slowing down moving parts. They are perfect for controlling the speed of moving doors, preventing slamming when the doors are closed or opened. And they are easy to assemble and are totally maintenance-free.
Different damping types can be selected to meet your requirements, including compression damping, extension damping, spring return damping or bi-directional damping.
Coricher multi-function hydraulic dampers are used in heavy sliding doors.
TECHNICAL DATA
Max stroke:
70mm
Tube length:
90mm
Max. force:
300±2N
Outer body diameter:
Ø15mm
Piston rod diameter:
Ø3mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
