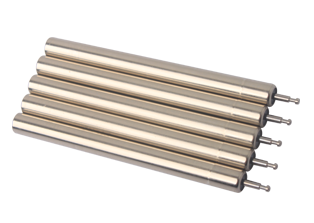

CR07-87-2.0-S/F Linear Damper
High-quality buffer without free travel
Max. force: 40±2N, Max. stroke: 65mm.
Damping has now become an indispensable standard feature for drawers, our dampers are high-quality to match your requirements, and we can provide you perfect solution, whatever the application. Coricher CR07-87-2.0-S/F hydraulic drawer buffers are precision manufactured hydraulic cylinders for slowing down the moving parts. They are maintenance-free, self-contained and sealed units. They will make your drawer feel more refined, more durable, with an extended service life.
Different damping types can be selected: push-in damping, pull-out damping, spring-return damping, bi-directional damping, depending on your requirements.
Coricher high-performance hydraulic drawer buffers are used in sliding drawers, motion doors, lids and more.
TECHNICAL DATA
Max stroke:
65mm
Tube length:
87mm
Max. force:
40±2N
Outer body diameter:
Ø7mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Stainless steel
Piston rod material:
Stainless Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
