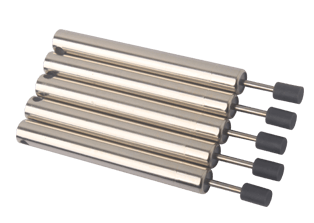

CR12-90-3.0-S/F Hydraulic Damper
Damping control without free travel
Damping force 5N to 100N, Max stroke 70mm.
Damping technology applied for doors to control the speed moving doors is almost a prerequisite. Coricher CR12-90-3.0-S/F hydraulic linear dampers are perfect for decelerating moving doors. They prevent noisy collisions between door components, reduce noise and extend product durability.
Depending your requirements, you can choose from a variety of damping types including: extension damping, compression damping, spring return damping and bi-way damping.
Coricher multi-function hydraulic dampers can be used for trash cans, motion doors, sliding drawers and numerous other applications.
TECHNICAL DATA
Max stroke:
70mm
Tube length:
90mm
Max compression force:
100N
Outer body diameter:
Ø12mm
Piston rod diameter:
Ø3mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
