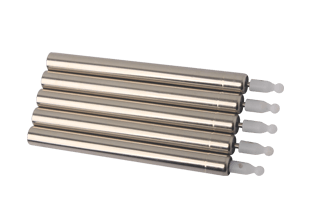

CR10-130-2.5-S/F Hydraulic Damper

Linear motion control without free travel

Max. force: 130±2N, Max. stroke: 115mm.


Damping technology has now become very common for kitchen cabinet doors. Coricher CR10-130-2.5-S/F maintenance-free and self-contained kitchen door hydraulic dampers are perfect for slowing down the motion of doors. They prevent unnecessary impact when the doors are closing or opening, giving the doors a more refined feel, as well as extending the unit’s lifetime.

Coricher high performance hydraulic dampers are used in kitchen doors, garbage cans, etc.

TECHNICAL DATA

Max stroke:

115mm

Tube length:

130mm

Max. force:

130±2N

Outer body diameter:

Ø10mm

Piston rod diameter:

Ø2.5mm

★Stable force performance:

Lifetime:

80,000 cycles

★Operating temperature:

-20 °C to +40 °C

Tube material:

Steel

Piston rod material:

Steel

Free-run:

No

PRODUCT DETAIL

detail-1

Applications

Sliding drawers
Sliding doors
Lids
