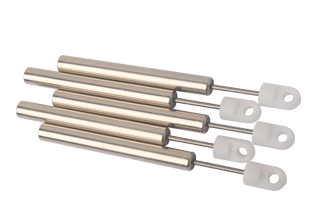

CR08-70-2.0-S/F Hydraulic Damper
Soft-close control
Max. force 80±2N, Max. stroke 50mm.
Coricher standard model hydraulic dampers are multipurpose. Model CR08-70-2.0-S/F can be used for lids which need motion control, to slow down moving parts or to protect users’ hands and fingers, or to obtain a silent closing. Whatever the purpose, Coricher soft close hydraulic dampers add a touch of class and quality to your products, thus creating happier customers.
Accurate, adaptable and durability rested encompass these components for damping the closing movement of lids.
TECHNICAL DATA
Max stroke:
70mm
Tube length:
50mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No

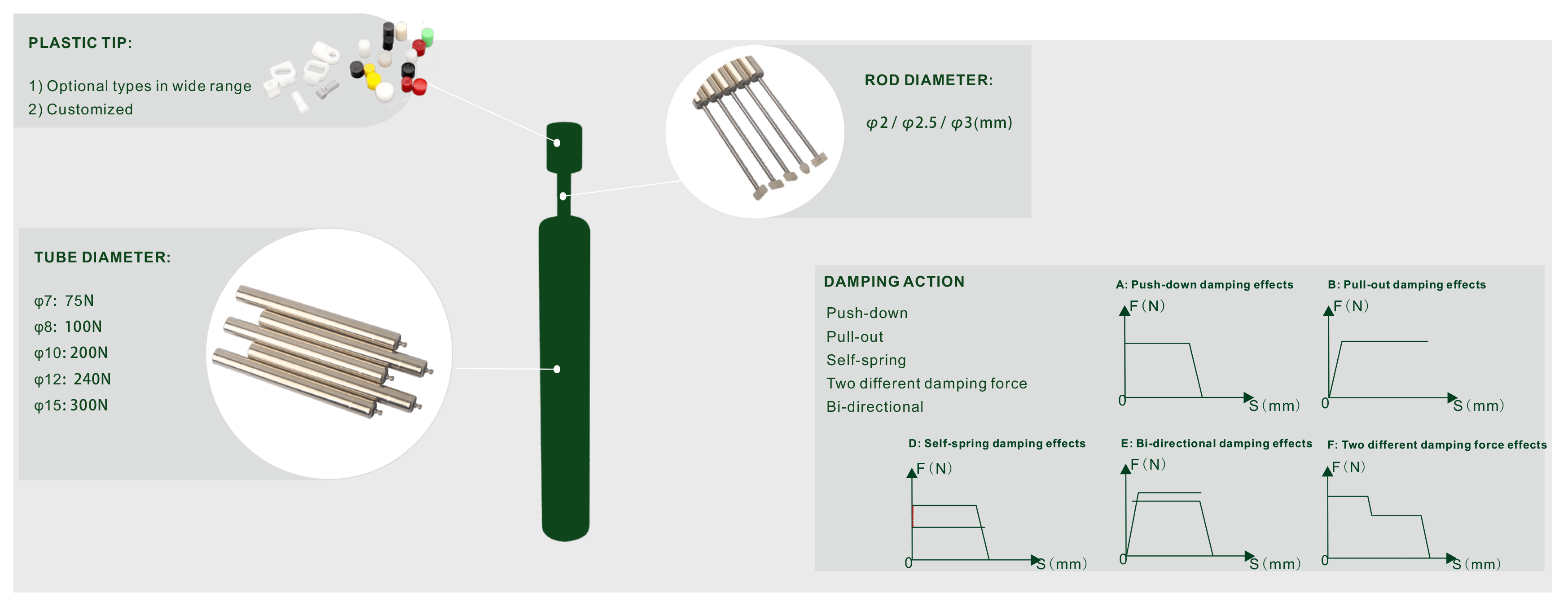

PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
