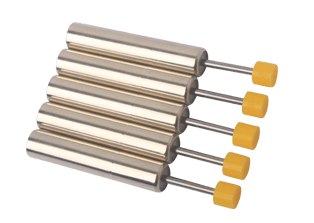

CR10-50-2.5-S/F Hydraulic Damper
Safe control without free travel
Max. force: 130±2N, Max. stroke: 30mm.
Coricher CR10-50-2.5-S/F linear dampers use hydraulic cylinders for perfect motion control, with the advantages of being maintenance-free, self-contained and sealed units.
Damping has now become a standard feature for drawers, and our dampers are the perfect solution to match your requirements, whatever the intended application.
Coricher hydraulic cylinders are used for sliding drawers, motion doors, lids and more.
TECHNICAL DATA
Max stroke:
30mm
Tube length:
50mm
Max. force:
130±2N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
