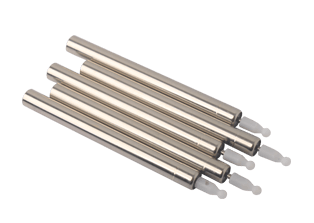

CR10-105-2.5-S/F Hydraulic Damper
High quality for buffering without free travel
Max. force: 130±2N, Max./ stroke: 85mm.
Buffering has become a regular feature of storage cupboard doors. CR10-105-2.5-S/F soft close cupboard dampers manufactured by Coricher are perfect for controlling the speed of the moving doors. Eliminate noisy and frustrating slamming of doors, while helping to extend the life of units our dampers are fitted to Our dampers are also easy to assemble and maintenance-free.
Different damping types can be selected to meet your requirements. The damping type can be compression damping, extension damping.
Coricher high performance hydraulic dampers are also used in motion doors, sliding drawers, garbage cans, cabinet and cupboard doors, etc.
TECHNICAL DATA
Max stroke:
85mm
Tube length:
105mm
Max. force:
130±2N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
