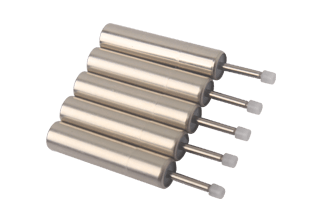

CR08-34-2.0-S/F Hydraulic Damper

Deceleration cylinder without free travel

Max. force: 80±2N, Max. stroke: 17mm.


Coricher CR08-70-2.0-S/F hydraulic dampers are high-performance hydraulic components for slowing down motion. They help to avoid noisy and dangerous door-closing impacts and help to create a silent and safe living or working environment for you. What’s more, they are maintenance-free, self-contained and sealed units.

Coricher hydraulic cylinders are high-quality hydraulic components  used for sliding drawers, motion doors, lids and many other applications.

TECHNICAL DATA

Max stroke:

17mm

Tube length:

34mm

Max. force:

80±2N

Outer body diameter:

Ø8mm

Piston rod diameter:

Ø2mm

★Stable force performance:

Lifetime:

80,000 cycles

★Operating temperature:

-20 °C to +40 °C

Tube material:

Steel

Piston rod material:

Steel

Free-run:

No

PRODUCT DETAIL

detail-1

Applications

Lids
