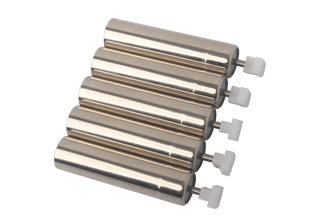

CR15-61-3.0-S/F Hydraulic Damper
Flexible damping units without free travel
Max. force: 300±2N
Max. stroke: 41mm.
Coricher CR15-61-3.0-S/F linear hydraulic dampers are the best choice controlling the movement of drawer, doors, lids and other products.
Damping has now become an indispensable and standard feature for drawers, and our dampers are of an excellent quality to match your requirements. We can provide the perfect solution, whatever their application.
Our linear hydraulic dampers are maintenance-free, self-contained and sealed units
TECHNICAL DATA
Max stroke:
41mm
Tube length:
61mm
Max. force:
300±2N
Outer body diameter:
Ø15mm
Piston rod diameter:
Ø3mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Lids
