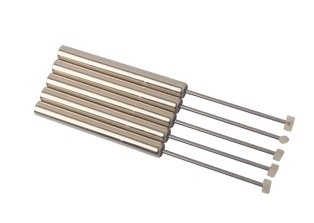

CR08-80-2.0-S/F Linear Damper
Dampers for speed control without free travel
Max. force: 80±2N
Max. stroke: 60mm
Buffering is now a required standard for drawer opening and closing. Buffering not only improves the feel, but also extends the life of drawers by eliminating damaging impact. Coricher CR08-80-2.0-S/F soft close drawer adapters are ideal to decelerate movement of drawers when they are opening or closing.
Different damping types are available, including push-in damping, pull-out damping, spring return damping and bi-directional damping, depending on your requirements.
Coricher multi-function linear hydraulic dampers are used in sliding drawers, motion doors, lids and many other applications where damping is needed.
TECHNICAL DATA
Max stroke:
60mm
Tube length:
80mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
