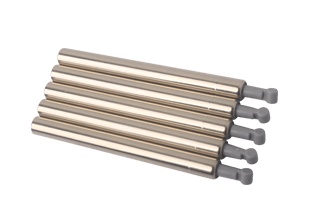

CR08-97-2.0-S/F Linear Damper
Linear motion control, free travel is optional
Max. force: 80±2N, Max. stroke: 75mm.
Damping has now become an industry standard feature for drawers, and our dampers are of the highest quality to match your needs. We are able to produce dampers on any style to perfectly meet your needs. CR08-97-2.0-S/F kitchen drawer soft close dampers manufactured by Coricher are ideal hydraulic cylinders for retarding the movement of drawers. They will make your drawers feel classier and more refined, making them more durable, thus having a longer lifetime. All our dampers are maintenance-free, self-contained and sealed units.
Different damping types can be selected: push-in damping, pull-out damping, spring return damping, bi-directional damping, and free travel damping for the last stage of a closing movement, depending on your requirements.
Coricher high-quality kitchen drawer soft close dampers are ideal for sliding drawers, sliding doors, lids and more.
TECHNICAL DATA
Max stroke:
75mm
Tube length:
97mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
