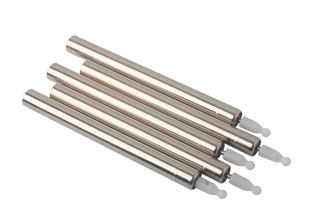

CR10-108-2.5-S/F Hydraulic Damper
Hydraulic damper, speed reduction for bathroom sliding doors without free travel
Damping force max. 200N, Max stroke 88mm.
Damping technology applied to sliding doors for speed reduction of the movement makes a huge difference to home comfort and safety. CR10-108-2.5-S/F hydraulic bathroom sliding door dampers are perfect for slowing down the motion of sliding doors. They prevent collisions between the door components and avoid creating annoying noise when the doors close or open.
Depending your requirements, you can choose from a selection of different damping types: push-in damping, pull-out damping, spring return damping and bi-directional damping.
Coricher high-adaptability hydraulic dampers are the best stop slamming door devices
TECHNICAL DATA
Max stroke:
88mm
Tube length:
108mm
Max compression force:
80N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
